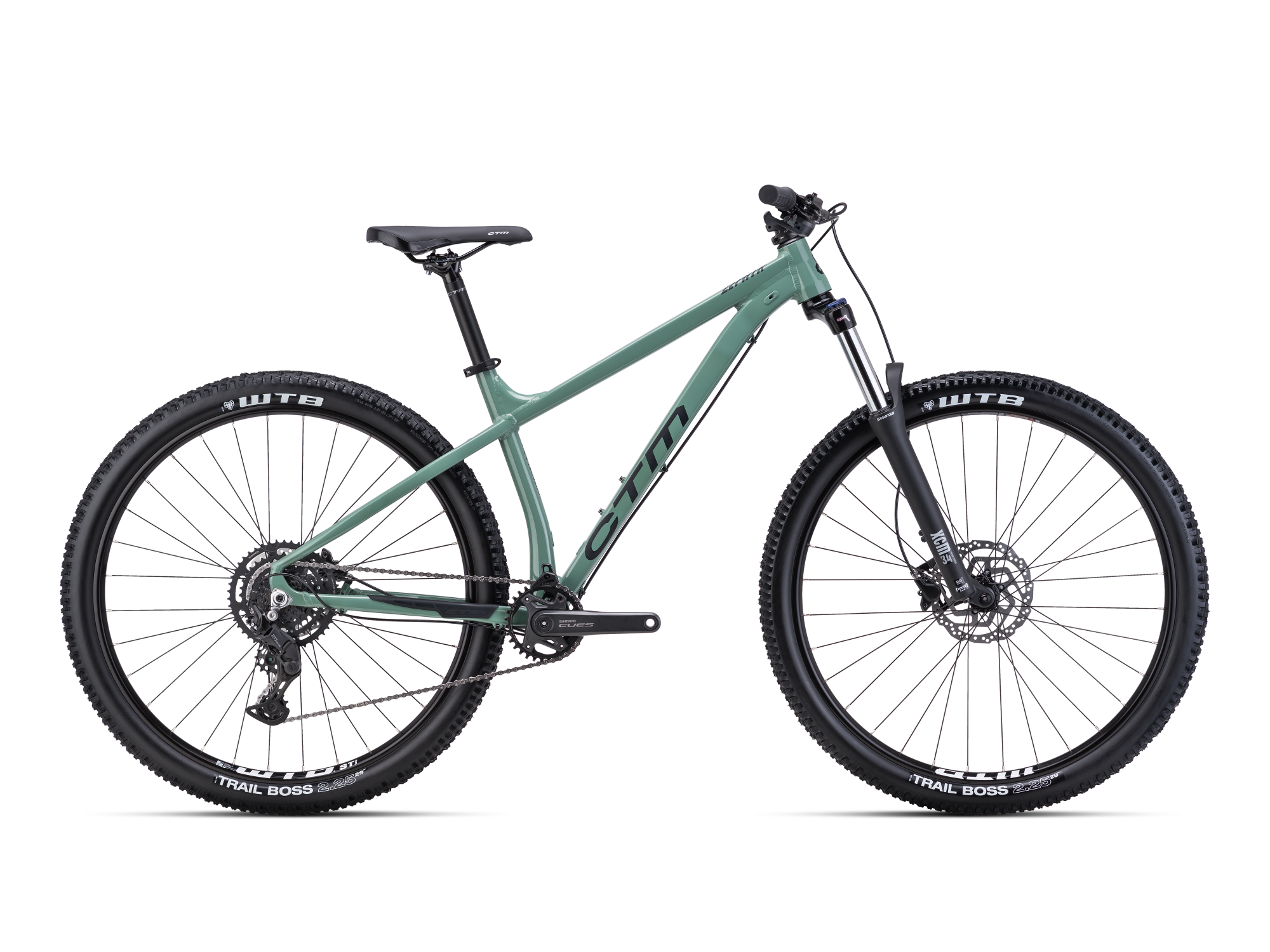

ZEPHYR is born for the mountains. It's an agile and responsive all-mountain bike with a solid frame that dares you to do more. Its timeless geometry makes it extremely agile and fast, and you'll have a lot of fun on the trails. It's available in two versions - with 27.5-inch wheels or larger, 29-inch wheels. If you're just starting out and deciding on a trail hardtail, you've come to the right place. The sturdy SUNTOUR XCM 34 fork with 130mm of travel is complemented by a new Shimano CUES groupset with a great range of gears. Reliable Shimano MT200 brakes stop you right where you need to be, and wide WTB rims and tyres give you the best possible grip with the surface.
| S | M | L | XL |
S
M
L
XL
|
||
|---|---|---|---|---|---|---|
| A | Head tube angle | 66.00 | 66.00 | 66.00 | 66.00 | |
| B | Seat tube angle | 72.00 | 72.00 | 72.00 | 72.00 | |
| C | Horizontal top tube | 556.00 mm | 577.00 mm | 607.00 mm | 633.00 mm | |
| D | Seat tube length | 400.00 mm | 440.00 mm | 480.00 mm | 520.00 mm | |
| E | Chainstay length | 435.00 mm | 435.00 mm | 435.00 mm | 435.00 mm | |
| F | Front center | 708.00 mm | 730.00 mm | 761.00 mm | 788.00 mm | |
| G | Head tube length | 90.00 mm | 95.00 mm | 110.00 mm | 115.00 mm | |
| H | BB drop | -50.00 | -50.00 | -50.00 | -50.00 | |
| I | Fork length | 545.00 mm | 545.00 mm | 545.00 mm | 545.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1138.00 mm | 1160.00 mm | 1191.00 mm | 1218.00 mm | |
| R | Reach | 400.00 mm | 420.00 mm | 445.00 mm | 470.00 mm | |
| S | Stack height | 612.00 mm | 617.00 mm | 630.00 mm | 635.00 mm |
