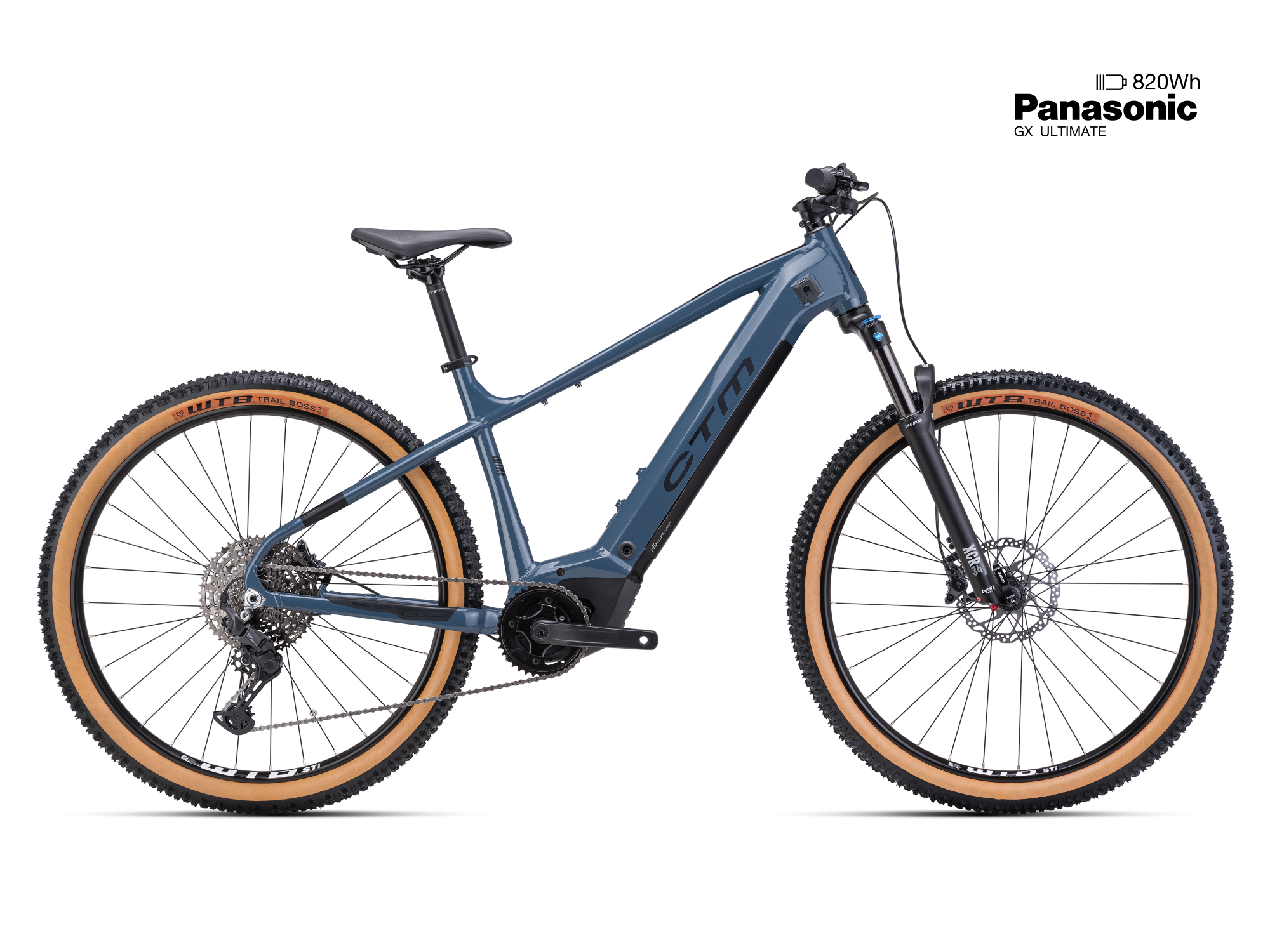

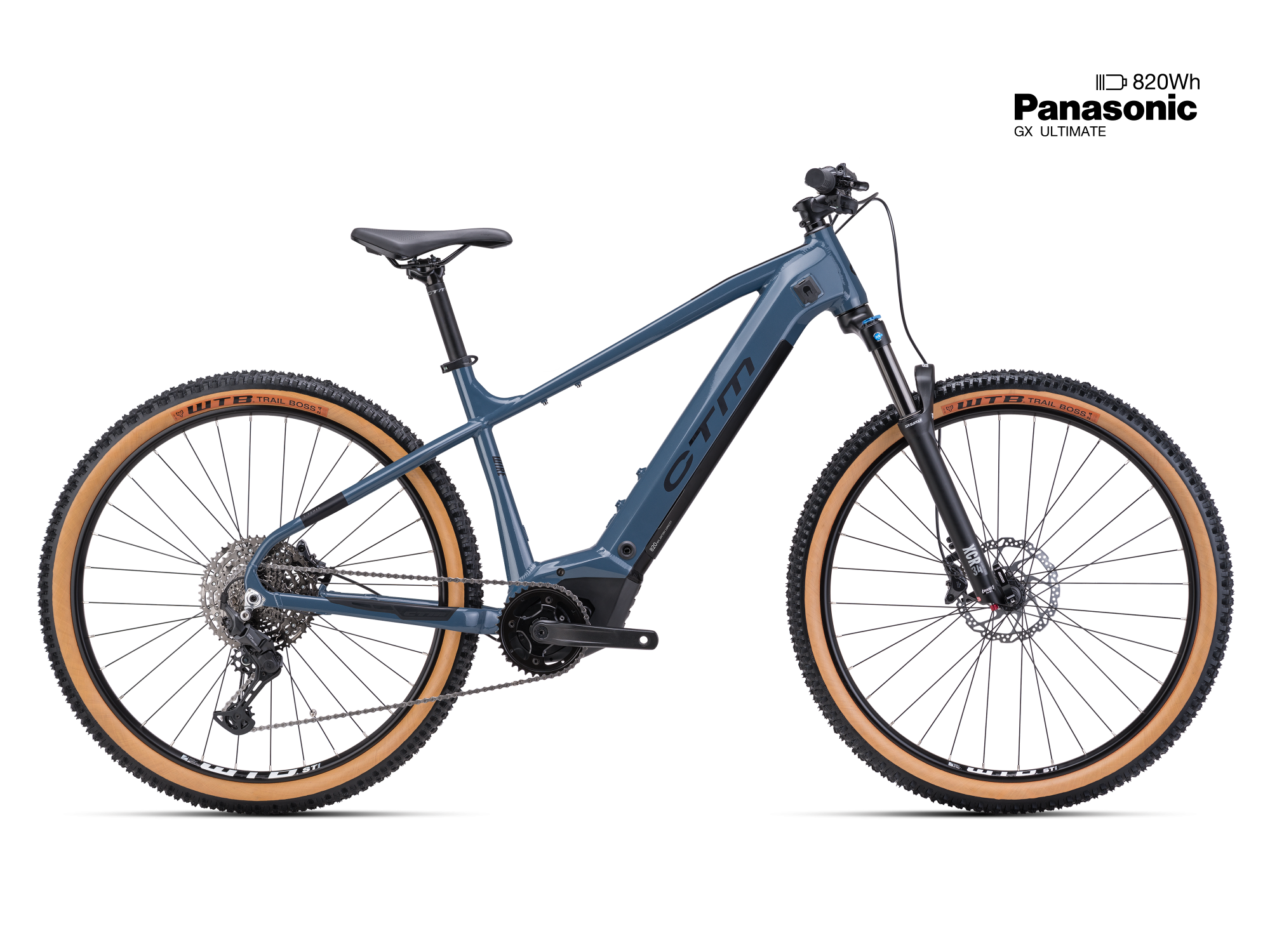

WIRE mountain e-bike will win you over with its versatility. The proven Japanese Panasonic motor in combination with the German BMZ battery, precision crafted frame combined with reliable components will make your ride one of joy. As we mentioned at the beginning, it doesn't matter if you're heading into the mountains, around town or on an expedition. On the new WIRE it will always be an experience. The MTB DNA is ingrained in it, and that means you can dare to tackle even the most challenging trails. The powerful Panasonic GX Ultimate motor with up to 95Nm of torque and the 820Wh BMZ battery guarantee you'll be exploring new horizons. All this is complemented by new reliable Shimano CUES components or a Suntour XCR34 air-sprung fork with 120mm travel.
| M (17") | L (19") | XL (21") |
M (17")
L (19")
XL (21")
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 67.50 | 67.50 | 67.50 | |
| B | Seat tube angle | 73.00 | 73.00 | 73.00 | |
| C | Horizontal top tube | 660.00 mm | 670.00 mm | 680.00 mm | |
| D | Seat tube length | 440.00 mm | 470.00 mm | 520.00 mm | |
| E | Chainstay length | 480.00 mm | 480.00 mm | 480.00 mm | |
| F | Front center | 759.00 mm | 769.00 mm | 779.00 mm | |
| G | Head tube length | 140.00 mm | 140.00 mm | 140.00 mm | |
| H | BB drop | -60.00 | -60.00 | -60.00 | |
| I | Fork length | 520.00 mm | 520.00 mm | 520.00 mm | |
| J | Fork offset | 47.00 mm | 47.00 mm | 47.00 mm | |
| K | Wheelbase | 1233.00 mm | 1243.00 mm | 1253.00 mm | |
| R | Reach | 460.00 mm | 470.00 mm | 480.00 mm | |
| S | Stack height | 652.00 mm | 652.00 mm | 652.00 mm |
