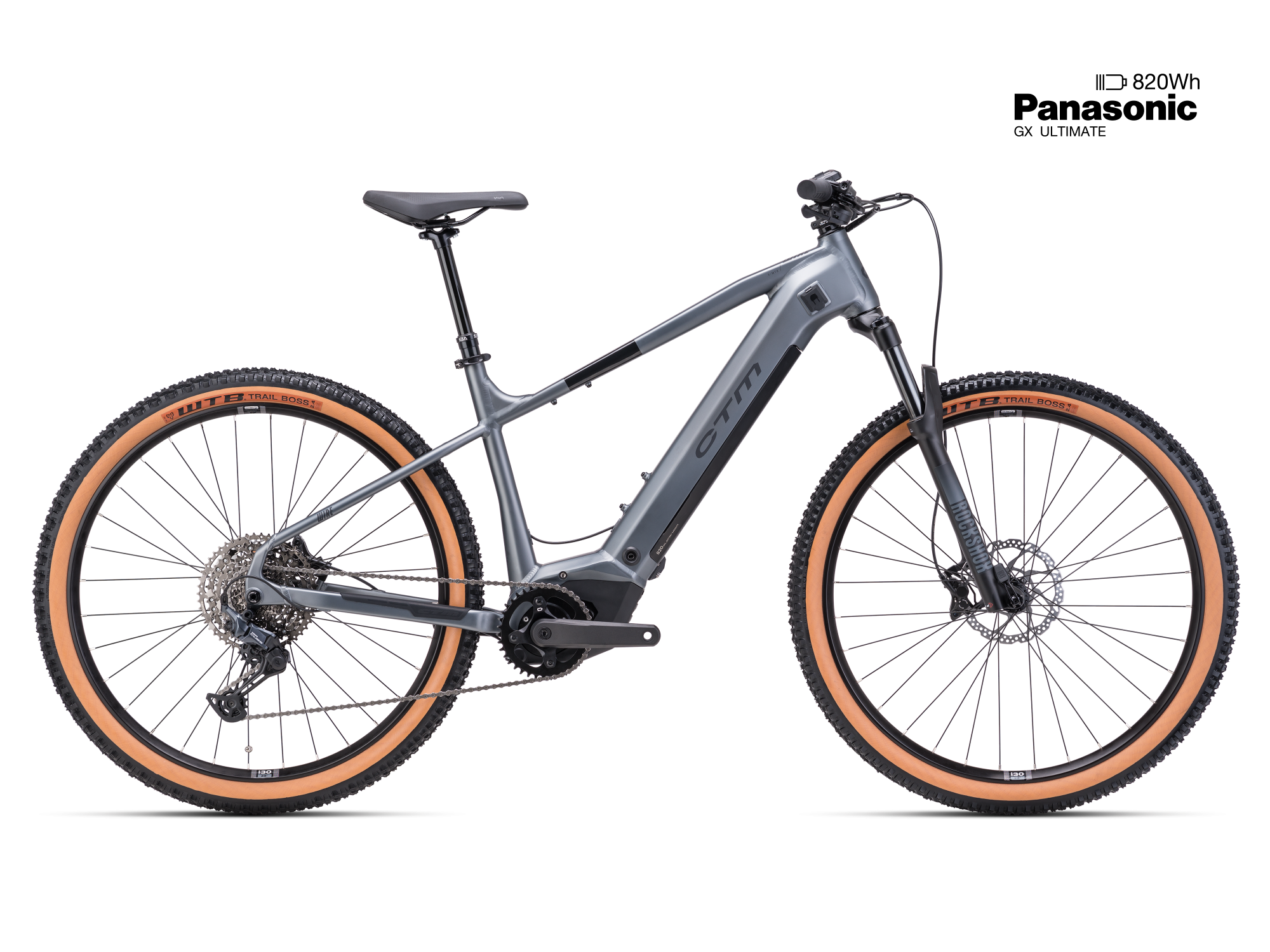

The new WIRE GX PRO mountain e-bike will win you over with its versatility. The proven Japanese Panasonic motor in combination with the German BMZ battery, precision crafted frame combined with reliable components will make your ride simply a joy. As we mentioned at the beginning, it doesn't matter if you're heading into the mountains, around town or on an expedition. On the new WIRE PRO it will always be an experience. The MTB DNA is ingrained in it, and in short, that means you can dare to take on even the toughest trails. The powerful Panasonic GX Ultimate motor with up to 95Nm of torque and the 820Wh BMZ battery guarantee you'll be exploring new horizons. All this is complemented by reliable new components such as an 11-speed Shimano CUES groupset or a Rock Shox Recon Silver RL 120mm air-suspension fork. On the descents, you can rely on the telescopic seatpost in addition to the suspension fork and tubular tires.
| M (17") | L (18,5") | XL (20") |
M (17")
L (18,5")
XL (20")
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 67.50 | 67.50 | 67.50 | |
| B | Seat tube angle | 74.00 | 74.00 | 74.00 | |
| C | Horizontal top tube | 650.00 mm | 660.00 mm | 670.00 mm | |
| E | Chainstay length | 480.00 mm | 480.00 mm | 480.00 mm | |
| F | Front center | 767.00 mm | 777.00 mm | 796.00 mm | |
| G | Head tube length | 150.00 mm | 150.00 mm | 150.00 mm | |
| H | BB drop | -60.00 | -60.00 | -60.00 | |
| I | Fork length | 535.00 mm | 535.00 mm | 535.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1241.00 mm | 1251.00 mm | 1270.00 mm | |
| R | Reach | 460.00 mm | 470.00 mm | 485.00 mm | |
| S | Stack height | 673.00 mm | 673.00 mm | 673.00 mm |
