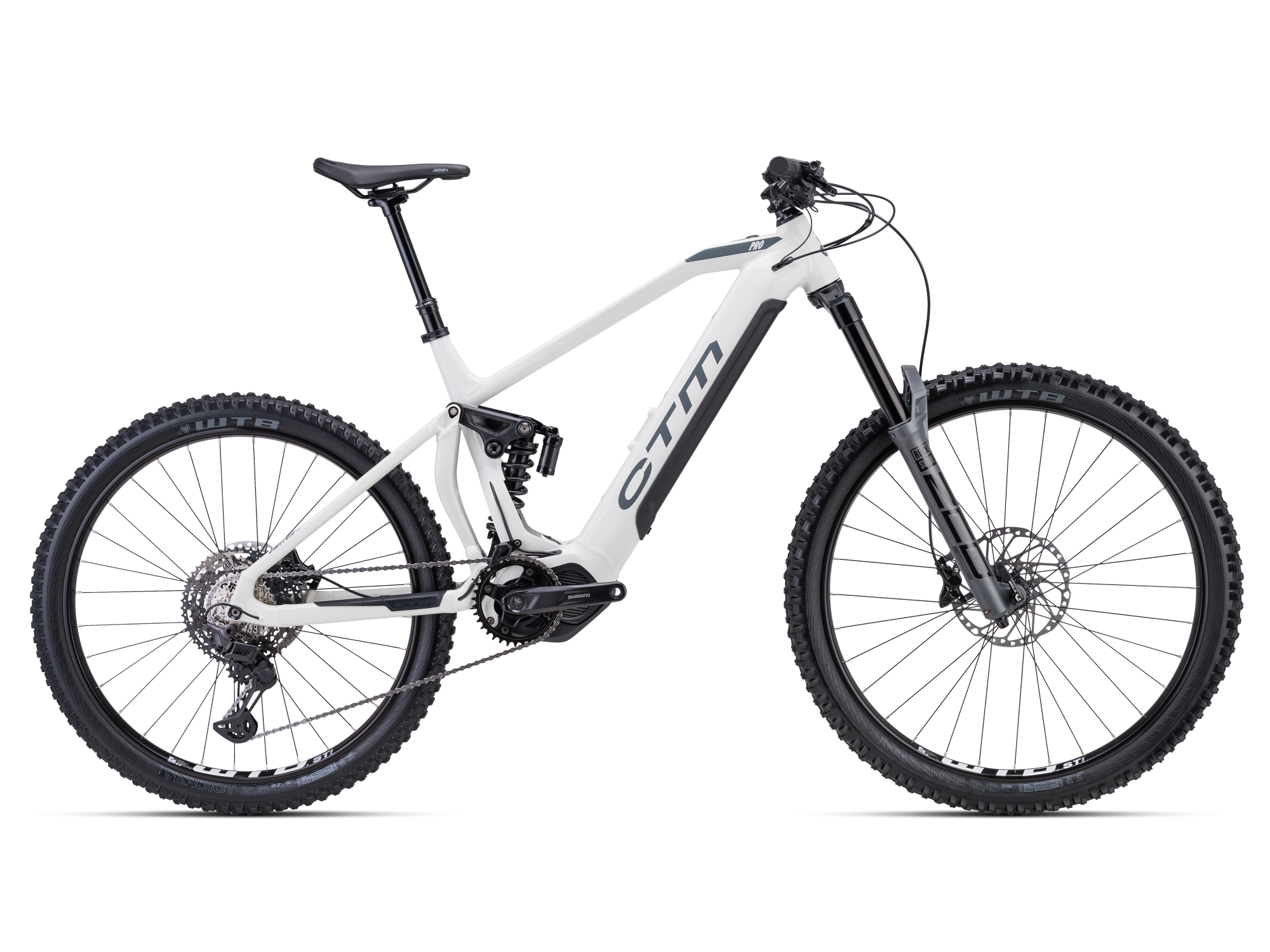

MTB e-bike without compromise! The Switch flawlessly fits the description “half Enduro / half Trail Bike“. We've bet on the Mullet Bike concept (29“ wheel in front / 27.5“ wheel in the rear). The main advantages of this design are the 29“ front wheel, which gives precise direction plus guarantees more stability, and the 27.5“ rear wheel, which guarantees maximum power transfer, traction and, above all, agility. The frame with its new industrial design offers 150mm of travel and the time-tested FSS virtual suspension system. The geometry is tuned for demanding terrain and technical trails. Energy is put into the pedals by SHIMANO's new SHIMANO. We're talking about the EP8 electric motor, which is smaller, quieter, more powerful (up to 85 Nm) and offers a much more refined ride with a range of up to 100km. The drive also supports the Walk function, where it helps push the bike up steep gradients that you can't climb anymore. The battery is a Shimano BT-8036, which has a 630Wh capacity and doesn't diminish significantly even after 1,000 charge cycles. The battery can also be removed from the bottom frame tube and charged off the bike. A Rock Shox SuperDeluxe COIL Select+ RT string shock and a sturdy Rock Shox ZEB ULTIMATE CHARGER3 RC2 fork with 170mm of travel keep the Switch less twitchy on even the roughest descents. The reliable Shimano XT 1x11 shifting system, Shimano MT420 4-piston brakes give you confidence in even the steepest passages. The wheels are on wide WTB STi35 rims and shod in WTB Verdict 2.5 and WTB Vigilante 2.6“ tyres. This set is ready for tubeless use. A Race Face Chester 35 cockpit and premium FIZIK Terra Aidon X5 saddle complete the equipment. There is a KindShock RAGEi telescopic seatpost with the following travel (M-125mm/L-150mm/XL-170mm). Switch PRO is a whole new level of cycling. Discover it!
| M | L | XL |
M
L
XL
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 66.50 | 66.50 | 66.50 | |
| B | Seat tube angle | 75.00 | 75.00 | 75.00 | |
| C | Horizontal top tube | 619.00 mm | 641.00 mm | 664.00 mm | |
| D | Seat tube length | 420.00 mm | 460.00 mm | 500.00 mm | |
| E | Chainstay length | 460.00 mm | 460.00 mm | 460.00 mm | |
| F | Front center | 760.00 mm | 784.00 mm | 808.00 mm | |
| G | Head tube length | 110.00 mm | 120.00 mm | 130.00 mm | |
| H | BB drop | -8.00 | -8.00 | -8.00 | |
| I | Fork length | 545.00 mm | 545.00 mm | 545.00 mm | |
| J | Fork offset | 42.00 mm | 42.00 mm | 42.00 mm | |
| K | Wheelbase | 1220.00 mm | 1245.00 mm | 1268.00 mm | |
| R | Reach | 460.00 mm | 480.00 mm | 500.00 mm | |
| S | Stack height | 592.00 mm | 601.00 mm | 610.00 mm |
