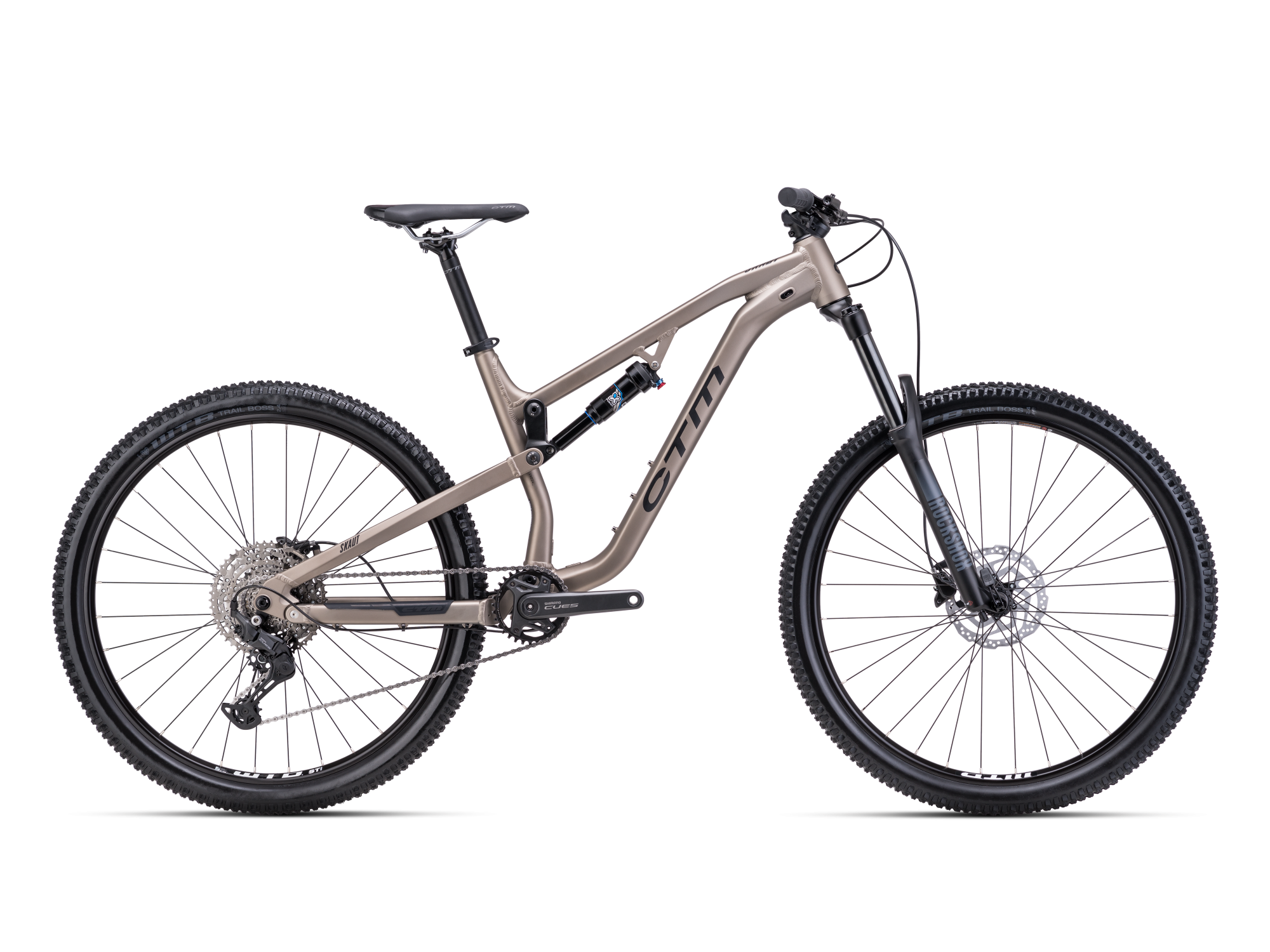

If you're looking for a trail bike with great travel, you've come to the right place. The all-new SKAUT with EN and 160mm of travel already defines a bike that will get you through technical and challenging descents. The four-bar suspension system, trail geometry, quality aluminium frame and reliable components will put a smile on your face every time you ride. The Rock Shox 35 Silver TK fork with 160mm of travel and X-Fusion 02 PRO RL rear shock will iron out every bump. The all-new, reliable 11-speed Shimano Cues will get you where you need to go. Perfect contact with the surface is achieved thanks to WTB Trail Boss tyres on WTB STi25 rigid rims.
| S | M | L | XL |
S
M
L
XL
|
||
|---|---|---|---|---|---|---|
| A | Head tube angle | 66.00 | 66.00 | 66.00 | 66.00 | |
| B | Seat tube angle | 76.00 | 76.00 | 76.00 | 76.00 | |
| C | Horizontal top tube | 563.50 mm | 602.00 mm | 618.50 mm | 645.00 mm | |
| D | Seat tube length | 400.00 mm | 430.00 mm | 455.00 mm | 485.00 mm | |
| E | Chainstay length | 450.00 mm | 450.00 mm | 450.00 mm | 450.00 mm | |
| F | Front center | 739.00 mm | 778.00 mm | 795.00 mm | 822.00 mm | |
| G | Head tube length | 100.00 mm | 110.00 mm | 115.00 mm | 120.00 mm | |
| H | BB drop | -10.00 | -10.00 | -10.00 | -10.00 | |
| I | Fork length | 570.00 mm | 570.00 mm | 570.00 mm | 570.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1189.00 mm | 1223.00 mm | 1245.00 mm | 1272.00 mm | |
| R | Reach | 420.00 mm | 455.00 mm | 470.00 mm | 495.00 mm | |
| S | Stack height | 601.50 mm | 610.50 mm | 615.00 mm | 620.00 mm |
