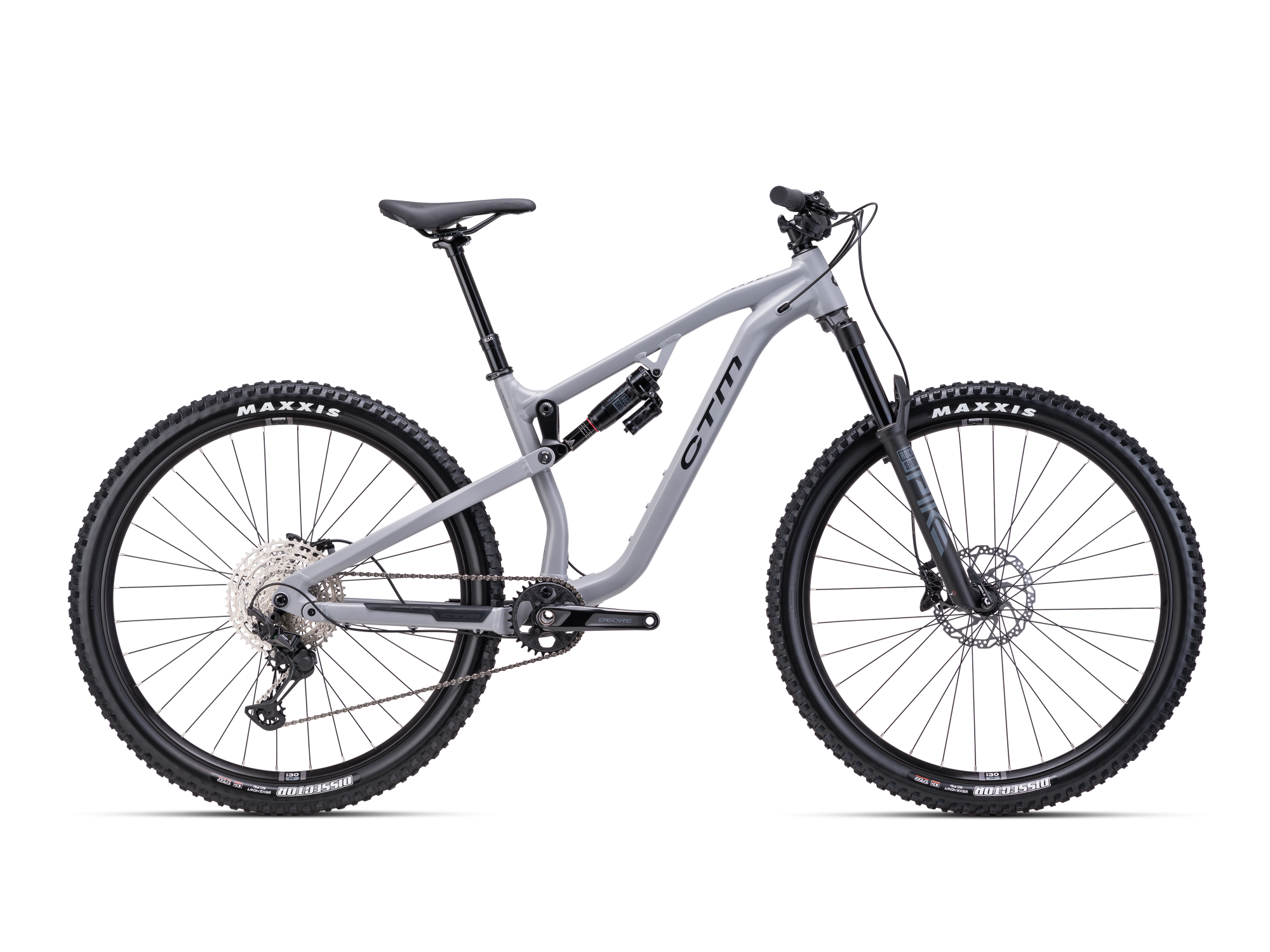

The all-new SKAUT will get you up the ridge easily but also down the technical trail quickly and safely. SKAUT opens the door to the world of full suspension trail bikes. The aluminium frame with four-pivot suspension system has a travel of 130mm. 29" inch wheels, modern geometry and reliable components define the SKAUT. The 4.0 model features RockShox's PIKE BASE RUSH air fork with 140mm travel and Super Deluxe Base shock. The reliable 12-speed Shimano XT + DEORE 12-speed groupset won't let you down on any climb. On the downhill, Shimano's powerful MT420 4-piston hydraulic brakes won't let you down. Perfect contact with the surface is achieved thanks to WTB Trail Boss tyres on WTB STi25 rigid rims.
| S | M | L | XL |
S
M
L
XL
|
||
|---|---|---|---|---|---|---|
| A | Head tube angle | 66.50 | 66.50 | 66.50 | 66.50 | |
| B | Seat tube angle | 69.50 | 69.50 | 69.50 | 69.50 | |
| C | Horizontal top tube | 565.00 mm | 600.00 mm | 620.00 mm | 647.00 mm | |
| D | Seat tube length | 400.00 mm | 430.00 mm | 455.00 mm | 485.00 mm | |
| E | Chainstay length | 450.00 mm | 450.00 mm | 450.00 mm | 450.00 mm | |
| F | Front center | 723.00 mm | 757.00 mm | 779.00 mm | 806.00 mm | |
| G | Head tube length | 100.00 mm | 110.00 mm | 115.00 mm | 120.00 mm | |
| H | BB drop | -38.00 | -38.00 | -38.00 | -38.00 | |
| I | Fork length | 540.00 mm | 540.00 mm | 540.00 mm | 540.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1170.00 mm | 1204.00 mm | 1226.00 mm | 1253.00 mm | |
| R | Reach | 420.00 mm | 450.00 mm | 470.00 mm | 495.00 mm | |
| S | Stack height | 605.00 mm | 614.00 mm | 618.50 mm | 623.00 mm |
