RUBYX

29”

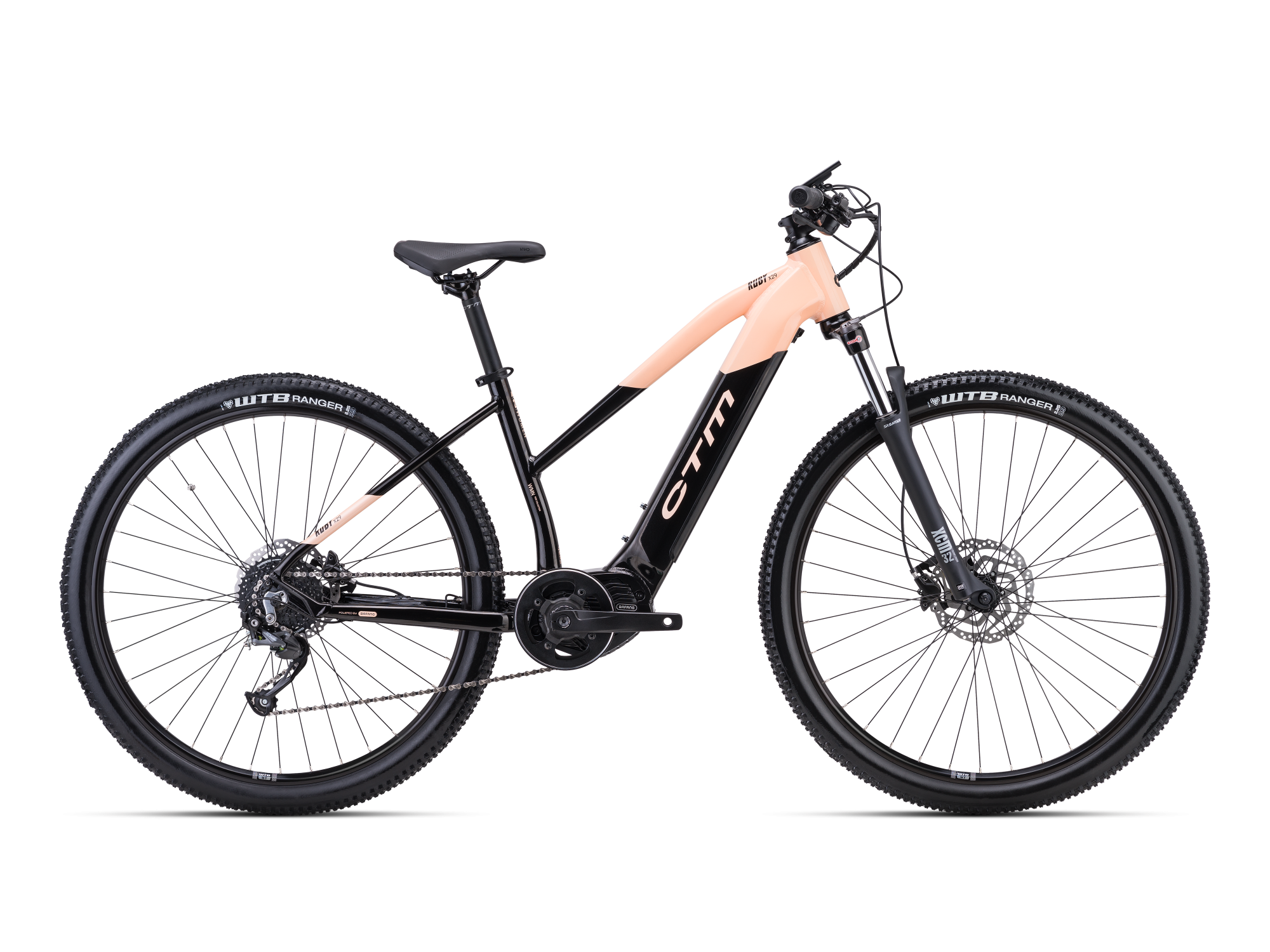

RUBY X

1 999.99 EUR 2 299.99 EUR

Sale

2024

Details
Specification
Komponenty
Size
Geometry

Details

Specification

Year

2024

Engine

BAFANG M500 / 250W / 95Nm

Battery

CTM IGB 720Wh / 48V / 15Ah

Frame

ALU 6061, M (16"), L (18")

Fork

Suntour XCM32 ATB, RL,DS, 100mm

Shifting

Shimano Altus SL-M2000RA 9 sp.

Derailleur

Shimano Altus RD-M2000SGS

Freewheel

Shimano CSHG400/9sp. 11-36

Chainwheel

Bafang 38T,170mm

Brakes

Shimano MT200 / SMRT10M

Rim

WTB ST i29 TCS 2.0 29" 36H

Tires

WTB Ranger 29x 2.25" Comp

Hubs

Novatec D041DSB/D142TSE,36H ,CL

Pedals

VPE 537

Chain

KMC X9e

Stem

CTM LCS/60mm

Handlebars

CTM rise bar, 700/31,8 mm

Head set

NECO H153

Saddle

SR Vivo Ergo Lady

Seat post

CTM 350x31,6 mm

Speed

9 speed

* Product specification, description and products themselves can be changed without further notice to improve their function, reliability or design

COMPONENTS

Engine
Bafang M500

Bafang - world famous electric motor manufacturer with over 20 years of experience and one of the most popular M500 motors. With an enormous 95Nm of torque, it provides consistent, powerful and efficient support to tackle any terrain. The motor is equipped with a torsion (pressure) sensor whereby the control unit evaluates how hard the rider is pedalling and accordingly ensures a perfectly tuned and responsive performance. You can choose from 5 levels of assistance and there is also a "walking assist" mode. With this versatile, affordable, lightweight (3.4kg) and, most importantly, powerful motor, you'll have loads of endless fun.

Battery
630 Wh integrated battery

One of the biggest advantages of this bike is certainly the battery with a capacity of up to 720Wh (15 Ah), allowing a potential range of up to 150 km on a single charge - the total range can vary depending on the level of support used and the nature of the route. The battery uses high quality Li-ion SAMSUNG cells and the time to full charge is approximately 5-7 hours.

Display
BAFANG

Clarity, amount of information displayed and a 3.5 inch full colour LCD Matrix screen - this is a brief summary of the main advantages of the Bafang DP-C18. A useful benefit is certainly the USB output, through which you can charge your smartphone. The weight of the display is only 200g, it uses the CAN protocol for communication and it also has IPX5 water resistance. On the backlit display you will of course find all the necessary information about your ride - speed (current, average, maximum), battery status, selected support mode, range, distance travelled, etc.

Remote control
BAFANG

You control all the functions of the e-bike via the remote control located on the handlebars of the bike so that everything is conveniently within your reach. Starting up, changing the assistance mode, switching lights on/off and changing information on the display are all instantly at your fingertips. Of course, the control position can be adjusted for your comfort

Bicycle size

190 cm

180 cm

170 cm

160 cm

150 cm

140 cm

155-175 cm

170-190 cm

* Above sizes are only suggested. We strongly recommend to check before buy.

Geometry

		M (16")	L (18")
A	Head tube angle	69.00	69.00
B	Seat tube angle	73.00	73.00
C	Horizontal top tube	576.00 mm	589.00 mm
D	Seat tube length	420.00 mm	470.00 mm
E	Chainstay length	475.00 mm	475.00 mm
F	Front center	662.00 mm	676.00 mm
G	Head tube length	120.00 mm	130.00 mm
H	BB drop	-44.00	-44.00
I	Fork length	490.00 mm	490.00 mm
J	Fork offset	46.00 mm	46.00 mm
K	Wheelbase	1134.00 mm	1153.00 mm
R	Reach	405.00 mm	415.00 mm
S	Stack height	597.00 mm	607.00 mm
