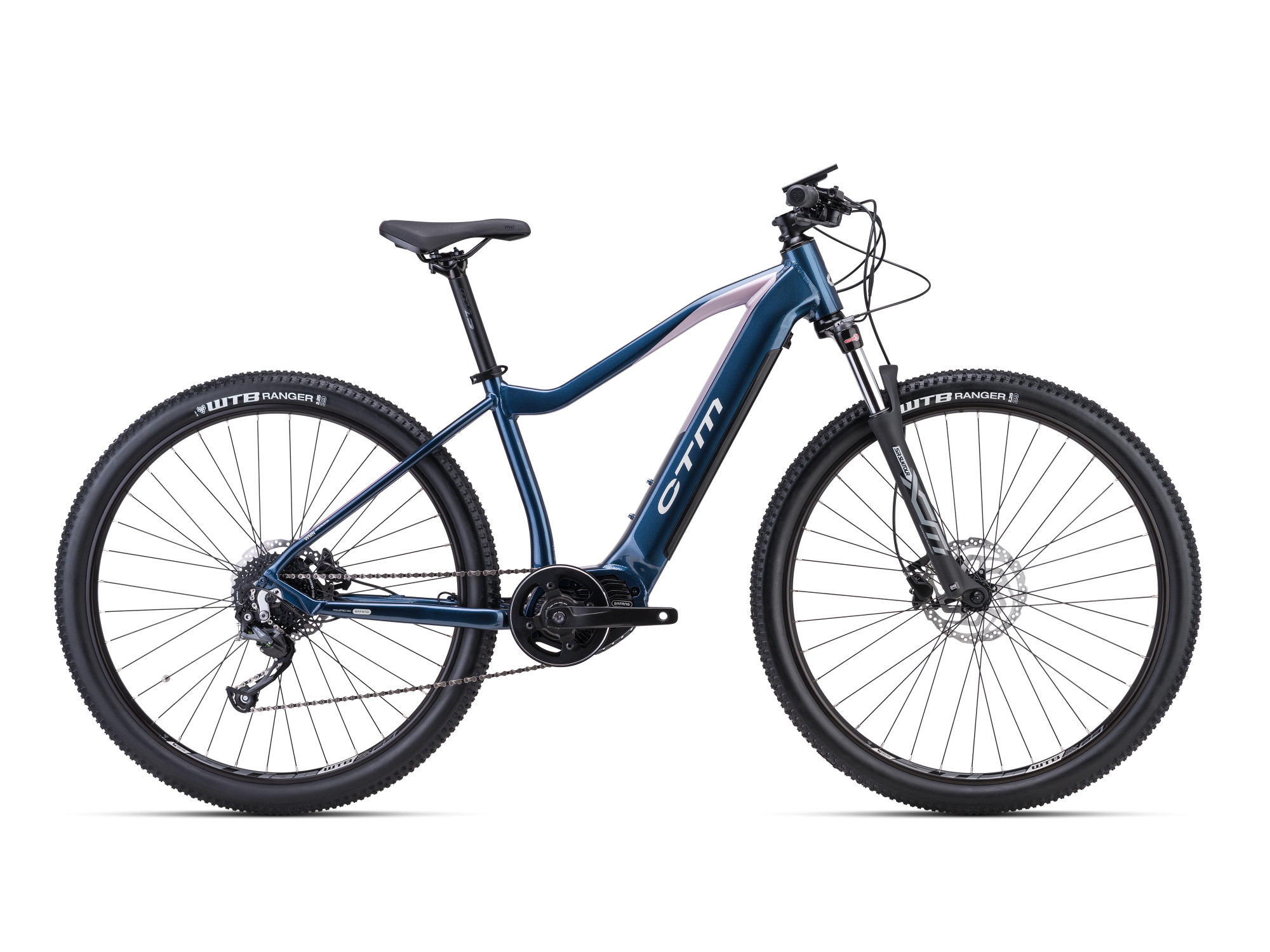

Women's e-bike designed for mountain terrain. It is available in two versions - with 27.5 inch wheels or with larger, 29 inch wheels. We equipped it with Bafang M500 electric motor. This electric motor is designed for optimum power transfer when pedalling. It delivers 250W of power and up to 95Nm of torque. Sufficient power supply for long trips is provided by the LG cell battery, which has a capacity of 630Wh and is fully integrated in the bike frame. It reaches full charge in approx. 5-6 hours. This system provides a range of 50-120km, depending on the selected level of support. The component is chosen with durability and flawless function in mind. If you want to discover the magic of the E-MTB and are looking for an economical solution, the RUBY models are made for you.
| M (16") | L (18") |
M (16")
L (18")
|
||
|---|---|---|---|---|
| A | Head tube angle | 69.00 | 69.00 | |
| B | Seat tube angle | 73.00 | 73.00 | |
| C | Horizontal top tube | 576.00 mm | 588.00 mm | |
| D | Seat tube length | 420.00 mm | 470.00 mm | |
| E | Chainstay length | 475.00 mm | 475.00 mm | |
| F | Front center | 667.00 mm | 681.00 mm | |
| G | Head tube length | 120.00 mm | 130.00 mm | |
| H | BB drop | -44.00 | -44.00 | |
| I | Fork length | 490.00 mm | 490.00 mm | |
| J | Fork offset | 46.00 mm | 46.00 mm | |
| K | Wheelbase | 1139.00 mm | 1153.00 mm | |
| R | Reach | 405.00 mm | 415.00 mm | |
| S | Stack height | 595.00 mm | 604.00 mm |
