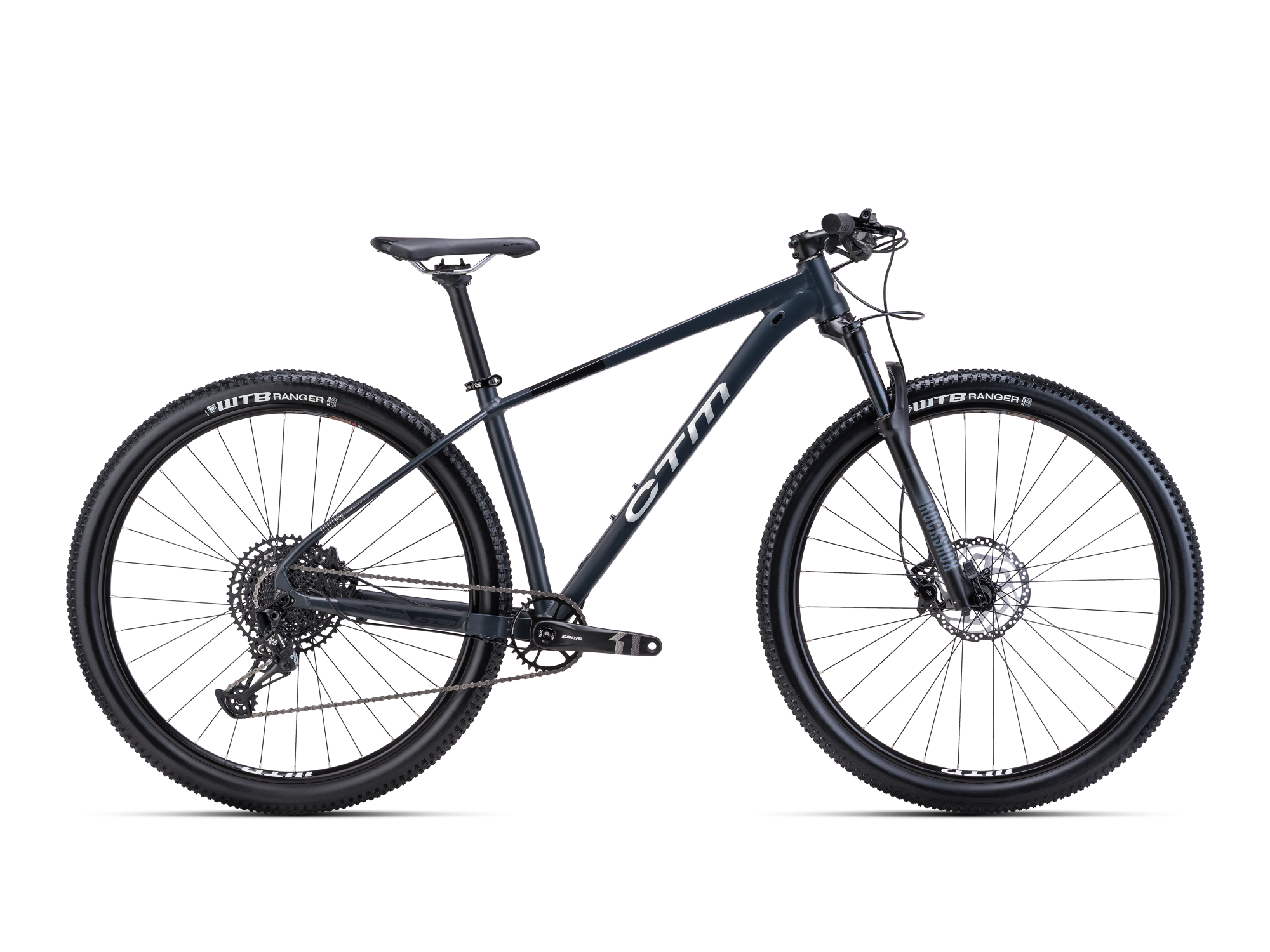

The all-new RASCAL is the perfect bike if you're determined to start your first XC race or marathon. It'll also get you by as a great companion for your daily rides on the circuits near you. A lightweight aluminum frame, contemporary progressive geometry, internal cable routing, and telescopic seatpost prep make it an uncompromising tool. Fast and stiff 29" inch wheels that have better traction, inertia, and most importantly, smoother off-road travel are already a given. The RASCAL 1.0 also offers very varied equipment such as the ROCK SHOX Judy air fork and the SRAM SX EAGLE 12-speed groupset.
| M | L | XL |
M
L
XL
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 68.00 | 68.00 | 68.00 | |
| B | Seat tube angle | 75.00 | 75.00 | 75.00 | |
| C | Horizontal top tube | 603.00 mm | 625.50 mm | 648.50 mm | |
| D | Seat tube length | 430.00 mm | 470.00 mm | 510.00 mm | |
| E | Chainstay length | 435.00 mm | 435.00 mm | 435.00 mm | |
| F | Front center | 710.50 mm | 734.50 mm | 758.00 mm | |
| G | Head tube length | 100.00 mm | 110.00 mm | 120.00 mm | |
| H | BB drop | -64.00 | -64.00 | -64.00 | |
| I | Fork length | 506.00 mm | 506.00 mm | 506.00 mm | |
| J | Fork offset | 44.00 mm | 44.00 mm | 44.00 mm | |
| K | Wheelbase | 1138.00 mm | 1162.00 mm | 1186.50 mm | |
| R | Reach | 440.00 mm | 460.00 mm | 480.00 mm | |
| S | Stack height | 609.50 mm | 618.50 mm | 628.00 mm |
