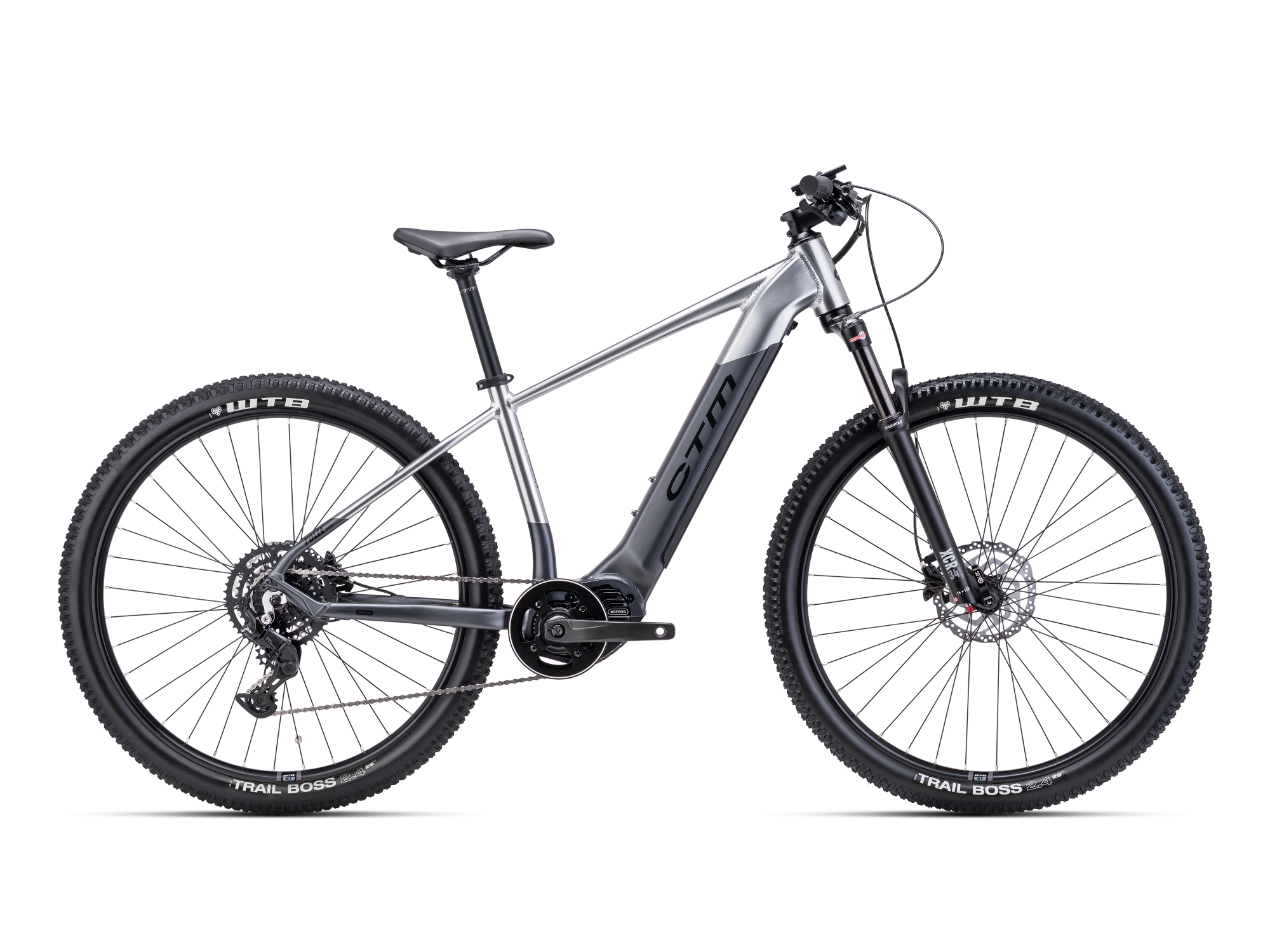

Pulze will gets you even further. The Pulze mountain e-bike gives you even more versatility, whether you're out on the ridge or just along the lake. With a powerful Bafang M500 motor, 95Nm of torque and a powerful integrated battery of up to 720Wh, you can change direction as you please. Tuned geometry and precisely selected components give you even more confidence and an even better feeling on every ride.
| M (17") | L (19") | XL (21") |
M (17")
L (19")
XL (21")
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 69.00 | 69.00 | 69.00 | |
| B | Seat tube angle | 74.00 | 74.00 | 74.00 | |
| C | Horizontal top tube | 587.00 mm | 607.00 mm | 627.00 mm | |
| D | Seat tube length | 432.00 mm | 483.00 mm | 533.00 mm | |
| E | Chainstay length | 475.00 mm | 475.00 mm | 475.00 mm | |
| F | Front center | 693.00 mm | 714.00 mm | 735.00 mm | |
| G | Head tube length | 120.00 mm | 130.00 mm | 140.00 mm | |
| H | BB drop | -60.00 | -60.00 | -60.00 | |
| I | Fork length | 510.00 mm | 510.00 mm | 510.00 mm | |
| J | Fork offset | 47.00 mm | 47.00 mm | 47.00 mm | |
| K | Wheelbase | 1161.00 mm | 1182.00 mm | 1203.00 mm | |
| R | Reach | 422.00 mm | 439.00 mm | 456.00 mm | |
| S | Stack height | 629.00 mm | 639.00 mm | 648.00 mm |
