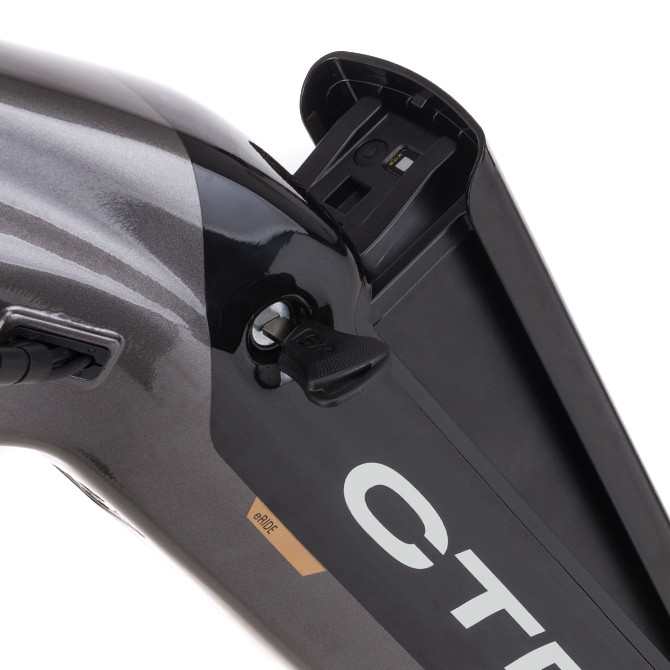

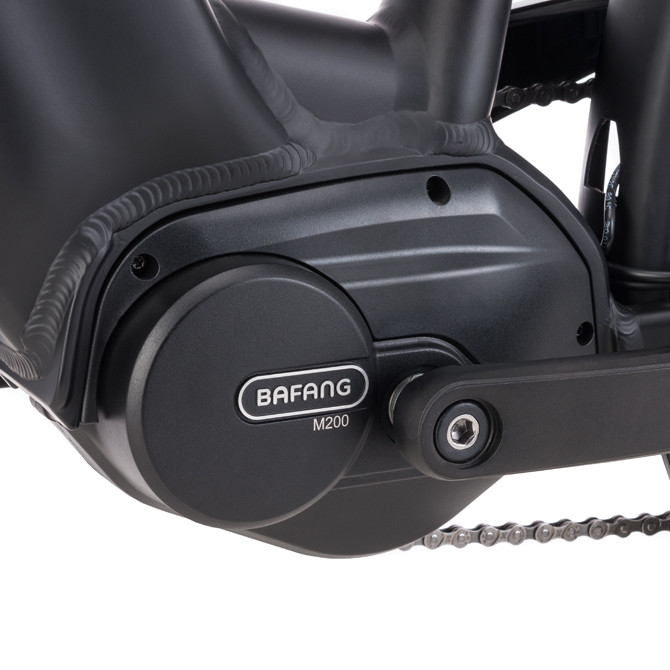

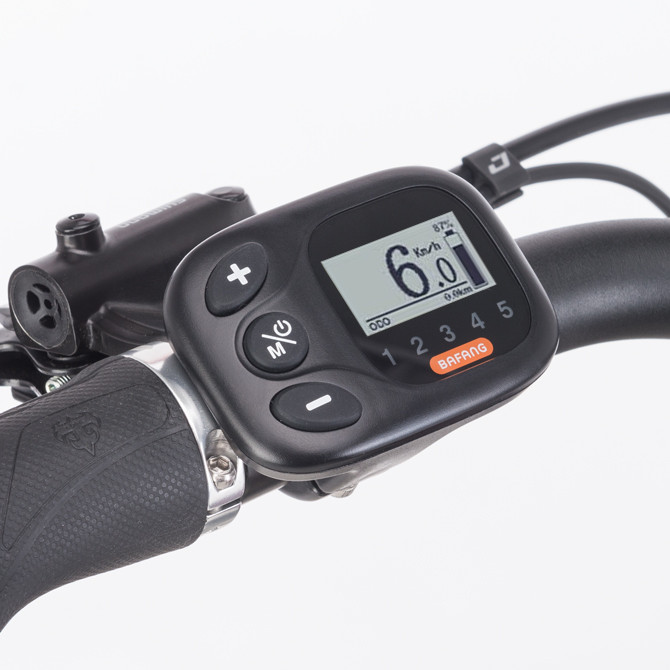

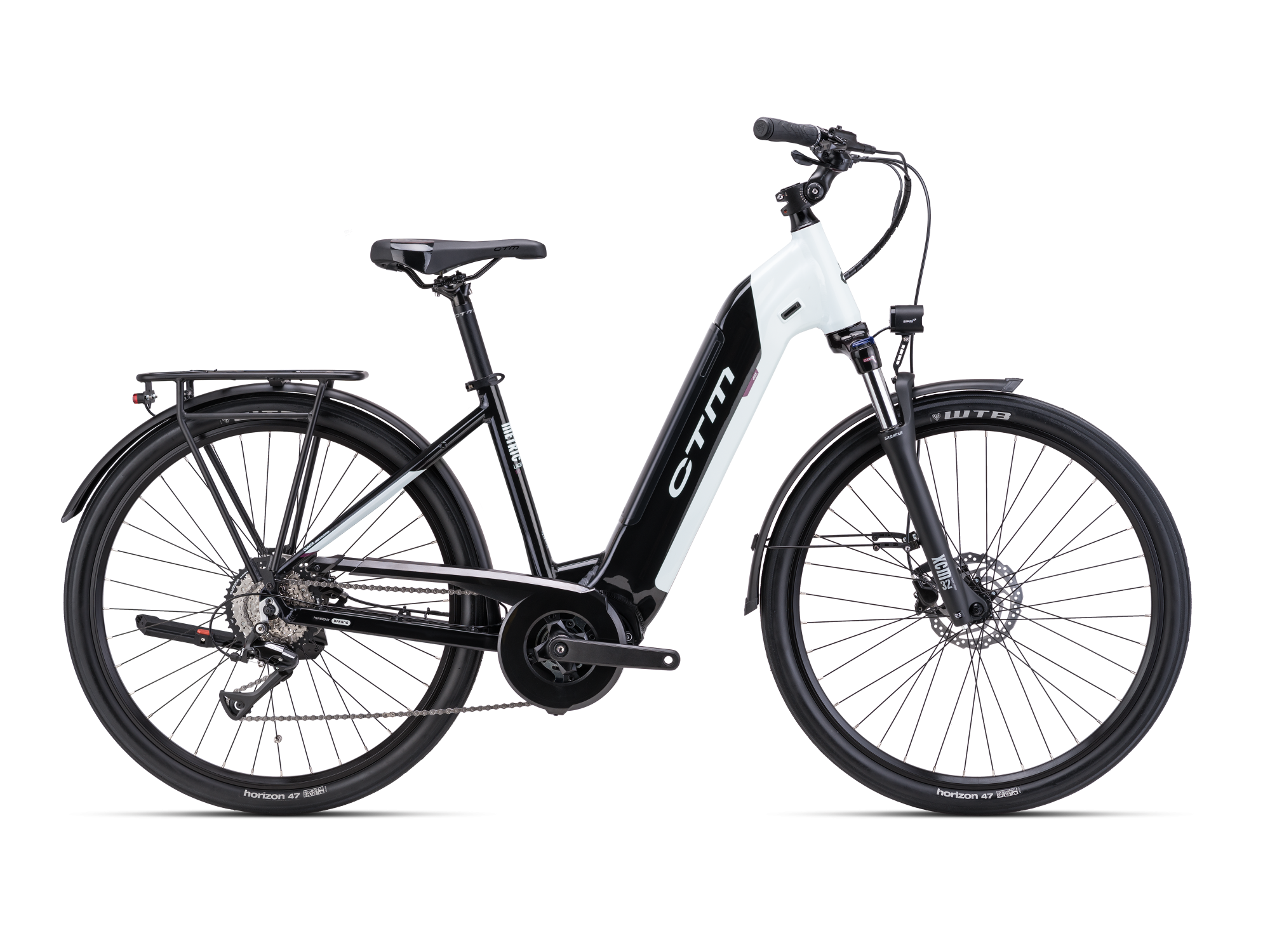

Women's urban e-bike designed for everyday use in the city, whether it's a ride to work or a ride to meet friends at the café. The bike is also ready for crossing light terrain. The WTB Horizon's sturdy 47-width WTB Horizon tires can handle broken city pavement, curbs and other city hazards. With a comfortable saddle and height-adjustable stem, the Metric is destined to become your indispensable urban companion. Complete lighting controlled directly from the handlebars, integrated mudguards, a minimalist rear rack and a compact kickstand are all included. The Metric 1.0 is equipped with the reliable BAFANG M200 assisted electric drive with 250W of power and 65Nm of torque. The motor is quiet, efficient and economical, with easy control of the assist stages from the handlebars. The battery has a capacity of 630Wh and doesn't lose it significantly even after 1000 charge cycles. Thanks to the fast charging system, the battery can be charged to 80% capacity in just 3-4 hours. It will reach full charge in 6 hours. Just hop in and experience the great feeling of riding!
| 16" (440) | 18" (480) |
16" (440)
18" (480)
|
||
|---|---|---|---|---|
| A | Head tube angle | 71.00 | 71.00 | |
| B | Seat tube angle | 73.00 | 73.00 | |
| C | Horizontal top tube | 590.00 mm | 610.00 mm | |
| D | Seat tube length | 440.00 mm | 480.00 mm | |
| E | Chainstay length | 485.00 mm | 485.00 mm | |
| F | Front center | 652.00 mm | 672.00 mm | |
| G | Head tube length | 170.00 mm | 170.00 mm | |
| H | BB drop | -59.00 | -59.00 | |
| I | Fork length | 477.00 mm | 477.00 mm | |
| J | Fork offset | 46.00 mm | 46.00 mm | |
| K | Wheelbase | 1131.00 mm | 1151.00 mm | |
| R | Reach | 396.00 mm | 416.00 mm | |
| S | Stack height | 657.00 mm | 657.00 mm |
