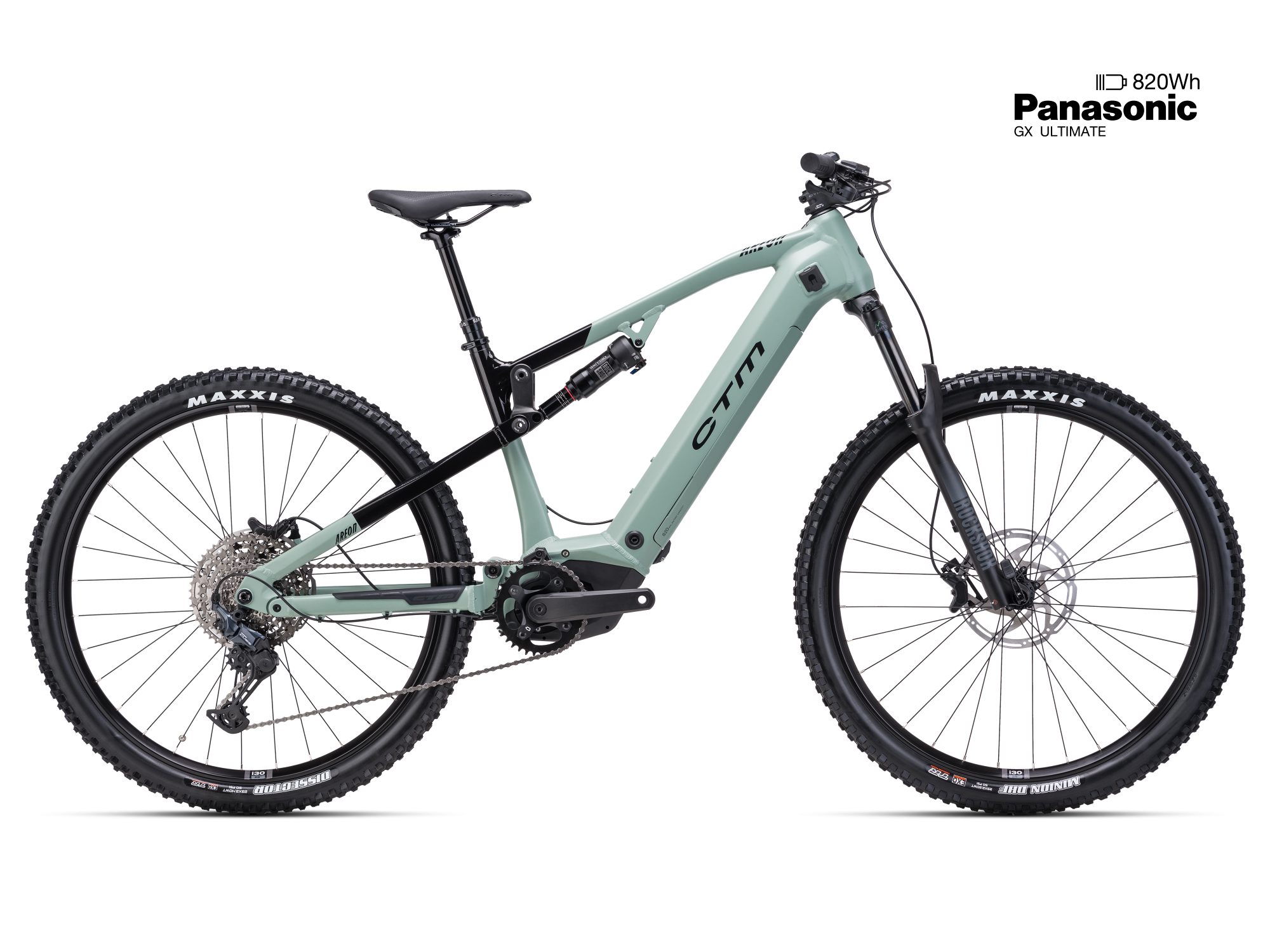

It will get you even further. The all-new AREON GX XPERT offers you even more than before. A proven Japanese Panasonic motor combined with a German BMZ battery, a precision-machined frame combined with reliable components will make your ride simply a joy. This uncompromising trail e-bike can handle the steepest climbs and the most rugged and technical descents with ease. The powerful Panasonic GX Ultimate motor with up to 95Nm of torque and the BMZ battery with 820Wh capacity guarantee you will explore new horizons. All this is complemented by new reliable components such as the 11-speed Shimano CUES groupset or the Rock Shox RECON SILVER air-suspension fork with 140mm travel. On the descents, you can rely on the telescopic seatpost in addition to the MAXXIS shock units and MAXXIS tires.
| S (16") | M (17") | L (18") | XL (19") |
S (16")
M (17")
L (18")
XL (19")
|
||
|---|---|---|---|---|---|---|
| A | Head tube angle | 66.00 | 66.00 | 66.00 | 66.00 | |
| B | Seat tube angle | 74.00 | 74.00 | 73.50 | 73.50 | |
| C | Horizontal top tube | 605.00 mm | 610.00 mm | 635.00 mm | 655.00 mm | |
| D | Seat tube length | 415.00 mm | 430.00 mm | 455.00 mm | 480.00 mm | |
| E | Chainstay length | 483.00 mm | 483.00 mm | 483.00 mm | 483.00 mm | |
| F | Front center | 785.00 mm | 790.00 mm | 804.50 mm | 830.00 mm | |
| G | Head tube length | 145.00 mm | 145.00 mm | 145.00 mm | 145.00 mm | |
| H | BB drop | -25.00 | -25.00 | -25.00 | -25.00 | |
| I | Fork length | 550.00 mm | 550.00 mm | 550.00 mm | 550.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1266.00 mm | 1272.00 mm | 1287.00 mm | 1312.00 mm | |
| R | Reach | 455.00 mm | 460.00 mm | 475.00 mm | 500.00 mm | |
| S | Stack height | 639.00 mm | 639.00 mm | 639.00 mm | 639.00 mm |
