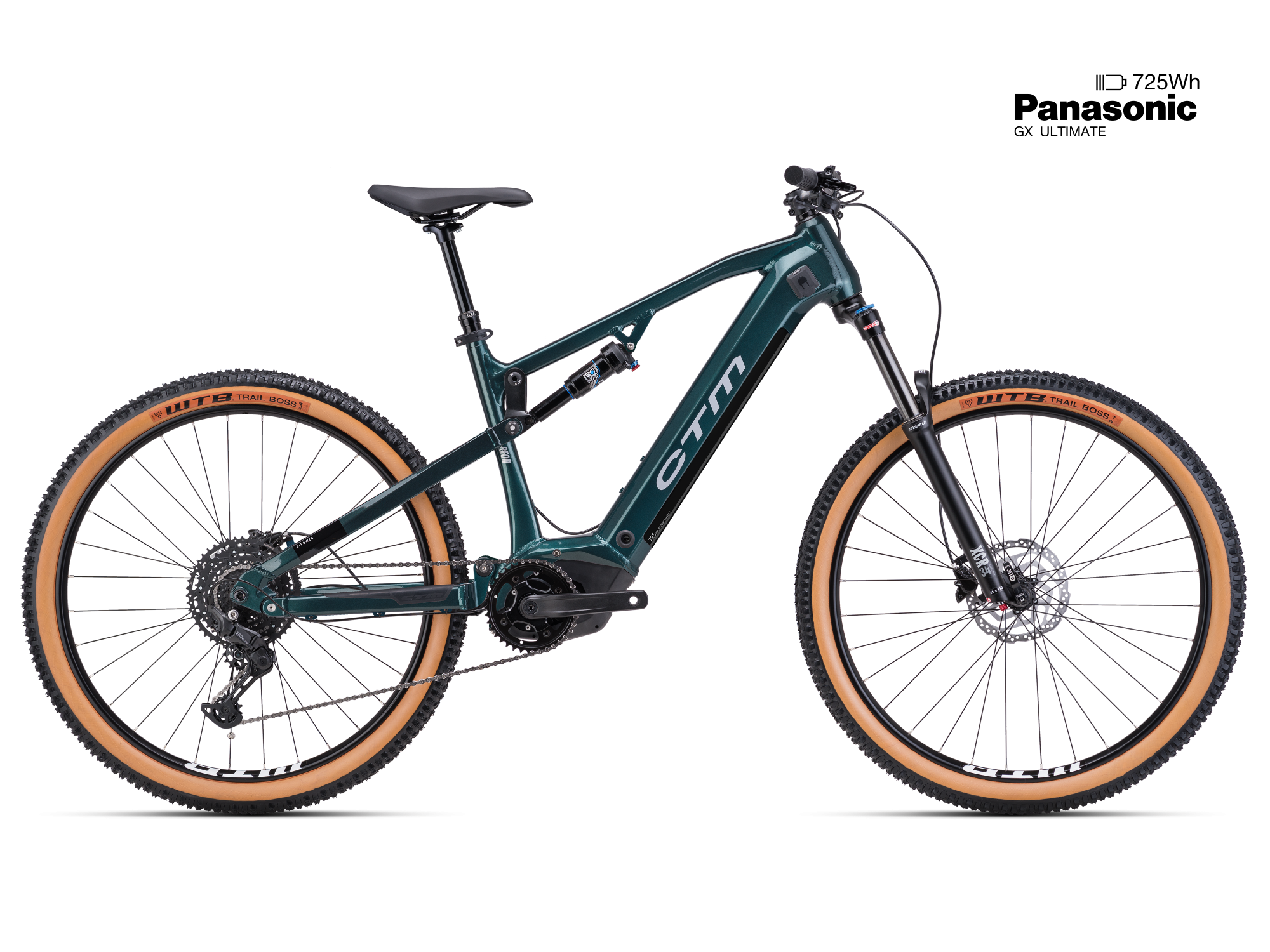

It will gets you even further. The all-new AREON offers you even more than before. The proven Japanese Panasonic motor combined with a German BMZ battery, precision-engineered frame combined with reliable components will make your ride one of joy. This uncompromising trail e-bike can handle the steepest climbs as well as rough and technical descents with ease. The powerful Panasonic GX Ultimate motor with up to 95Nm of torque and the 720Wh BMZ battery guarantee that you'll explore new horizons. The AREON with 135mm rear travel and 140mm front travel will forgive you many a rough passage on the trails.
| M (17") | L (19") | XL (21") |
M (17")
L (19")
XL (21")
|
||
|---|---|---|---|---|---|
| A | Head tube angle | 66.00 | 66.00 | 66.00 | |
| B | Seat tube angle | 74.00 | 73.20 | 73.20 | |
| C | Horizontal top tube | 605.00 mm | 635.00 mm | 660.00 mm | |
| D | Seat tube length | 440.00 mm | 465.00 mm | 485.00 mm | |
| E | Chainstay length | 483.00 mm | 483.00 mm | 483.00 mm | |
| F | Front center | 785.00 mm | 804.50 mm | 828.00 mm | |
| G | Head tube length | 145.00 mm | 145.00 mm | 145.00 mm | |
| H | BB drop | -25.00 | -25.00 | -25.00 | |
| I | Fork length | 550.00 mm | 550.00 mm | 550.00 mm | |
| J | Fork offset | 51.00 mm | 51.00 mm | 51.00 mm | |
| K | Wheelbase | 1267.00 mm | 1287.00 mm | 1312.00 mm | |
| R | Reach | 455.00 mm | 475.00 mm | 500.00 mm | |
| S | Stack height | 639.00 mm | 639.00 mm | 639.00 mm |
